Welcome to the project page for TBTK

TBTK is a c++ library for solving general bilinear Hamiltonians. A flexible indexing scheme allows for general models to be setup with little effort. The model can either be solved using a DiagonalizationSolver, giving eigenstates and eigenvectors, or using a ChebyshevSolver to calculate Green's functions.

Note: The library is in beta stage and rapid changes to the code base can occur. It is therefore advised that a local copy of the library is created before updating it in case important projects are dependent on it.

Introductory material

Quick start
Presentation
Templates (see src/main.cpp in each template folder)
API

Example

Setting up and diagonalizing a two dimensional tight-binding model with chemical potential mu and nearest neighbor hopping t. Eigenvalues and DOS are extracted and written to file.

//Create model and set up hopping parameters
Model model;
for(int x = 0; x < SIZE_X; x++){
    for(int y = 0; y < SIZE_Y; y++){
        for(int s = 0; s < 2; s++){
            //Add hopping amplitudes corresponding to chemical potential
            model.addHA(HoppingAmplitude(-mu,   {x, y, s},  {x, y, s}));

            //Add hopping amplitudes corresponding to t
            if(x+1 < SIZE_X)
                model.addHAAndHC(HoppingAmplitude(-t,   {(x+1)%SIZE_X, y, s},   {x, y, s}));
            if(y+1 < SIZE_Y)
                model.addHAAndHC(HoppingAmplitude(-t,   {x, (y+1)%SIZE_Y, s},   {x, y, s}));
        }
    }
}

//Construct model
model.construct();

//Setup and run DiagonalizationSolver
DiagonalizationSolver dSolver;
dSolver.setModel(&model);
dSolver.run();

//Set filename and remove any file already in the folder
FileWriter::setFileName("TBTKResults.h5");
FileWriter::clear();

//Create DPropertyExtractor
DPropertyExtractor pe(&dSolver);

//Extract eigenvalues and write these to file
Property::EigenValues *ev = pe.getEigenValues();
FileWriter::writeEigenValues(ev);
delete ev;

//Extract DOS and write to file
const double UPPER_LIMIT = 6.;
const double LOWER_LIMIT = -4.;
const int RESOLUTION = 1000;
Property::DOS *dos = pe.calculateDOS(UPPER_LIMIT, LOWER_LIMIT, RESOLUTION);
FileWriter::writeDOS(dos);
delete dos;

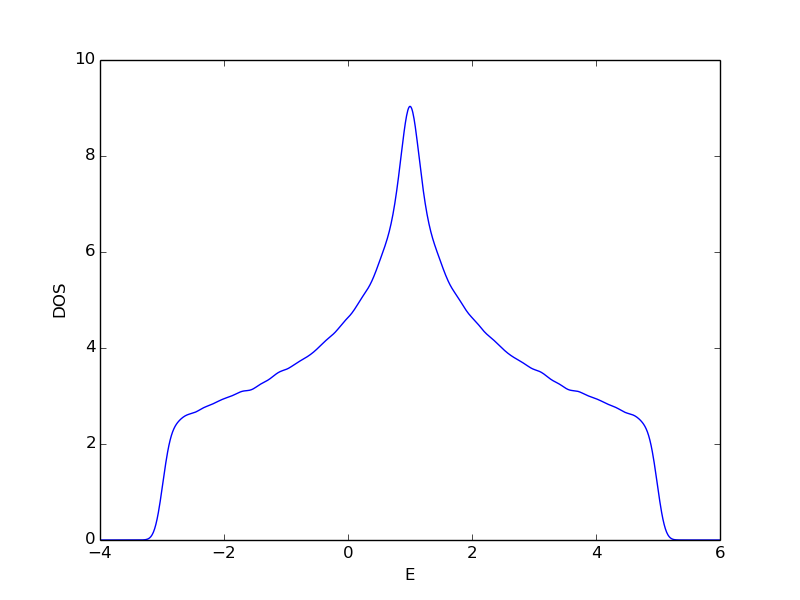

DOS calculated using SIZE_X=SIZE_Y=40 and plotted using Gaussian smoothing with sigma=0.1.

Installation

Currently the library can only be installed without modification if the computer has gcc 4.9 and nvcc 7.0 installed, and these can be loaded using "module load gcc/4.9" and "module load nvcc/7.0". If this is the case, type

git clone https://github.com/dafer45/TBTK
cd TBTK
source init_session.sh
./install.sh -CUDA

If CUDA is not available it is also possible to install the library without support for GPU by typing

git clone https://github.com/dafer45/TBTK
cd TBTK
source init_session.sh
./install.sh

If you are interested in installing the library on a different system, contact kristofer.bjornson@physics.uu.se for further instructions.

Update

To update to the latest version of the library, type

git pull
source init_session.sh
./update.sh -CUDA

To update the library without CUDA support, type

git pull
source init_session.sh
./update.sh

Initialize session

Each time a new session is started by opening a new shell, the library has to be initialized by entering the library folder and typing

source init_session.sh

Compile and run Templates

Enter the template folder, for example Templates/BasicDiagonalization, and type

make
./build/a.out

The results are now stored in the file TBTKResults.h5. These can further be plotted and saved in the folder figures by typing

./plot.sh

Note that plotting only is possible if python as well as the python libraries matplotlib, scipy, and h5py are installed on the computer.
